Clean 4 Summa tanks at the same time, and the cleaning time will be recorded.
The cleaning temperature (air chamber temperature + 10 ℃ - 150 ℃) of 4 pipelines can be set independently.
Vacuum process (max5x10-4rr) and high purity gas flushing (10-40psi) can be repeated.
Vacuum, depressurization, flushing repetition times and temperature can be set separately
Product Overview
Suma cans are used to collect ambient air samples. If not thoroughly cleaned, the samples collected in the Suma tank will affect the subsequent analysis.
Product Appliation
used Summa tank cleaning

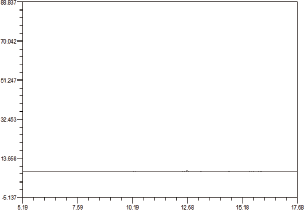

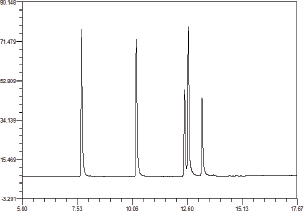

Before cleaning1.0ppb BTEXs After cleaning
进样设置：进样流量50ml/min，进样时间：2.0min
清洗设置：真空度5x10-4torr，增压冲洗25psi，加热120℃，重复2次
产品标准
符合HJ759-2015标准中对苏玛罐清洗的要求
Injection setting: injection flow 50ml / min, injection time: 2.0min,
Cleaning setting: vacuum degree 5x10-4torr, pressurized flushing 25psi, heating 120 ℃, repeated twice, the product standard meets the requirements of HJ759-2015 standard for Suma tank cleaning
